Description

Key Features
0.67” DLP® and BrilliantColor™ technology
High brightness with 30,000 hours of laser life (Eco mode)
Powered Lens Control with Lens Positioning Memory (LPS)
Low power consumption designed to reduce energy costs
Large projection size with excellent picture quality
Constant Brightness for extend light source life & easy blending
IPX6 High standards dust protection to extend projector life
360° free installation and multiple geometric adjustments for easy installation
Compatible with UHD-4K input signals
Supports Art-Net for stage control
“Rental Mode“ ready for rental applications
Built-in Speaker 10w x2
HDBaseT™ interface for the transmission of high quality audio and video (4K) data over 100M
Supported network & projector installation control software
Available in nine (9) interchangeable motorized lens (Optional)

_{Specifications
DU7099Z}
Native Resolution
WUXGA (1920 x 1200)
Brightness
8000 ANSI Lumens
Contrast Ratio
3,000,000:1 (Full On/Off)
Max. Supported Resolution
4K-UHD (3840 x 2160) @60Hz
Native Aspect Ratio
16:10
Lamp Life and Type
Lamp free design. Laser light source lasts up to 20,000 hours
Display Type
Single chip DLP® Technology by Texas Instruments
Chip Size
0.67” DMD
Throw Ratio
9 optional lenses from 0.50:1 to 8.3 :1 throw ratio range
Zoom Ratio
Motorized
Offset
Motorized Lens Shift
Keystone Correction
Vertical +/-30°; Horizontal +/-30°
Speakers
10W x 2
Lens Shift Range
Lens Shift Range (Vertical: Bottom 50% to Top 70%, Horizontal: Left 15% to Right 15%)
Video Compatibility
SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L), 4K-UHD
I/O Connection Ports

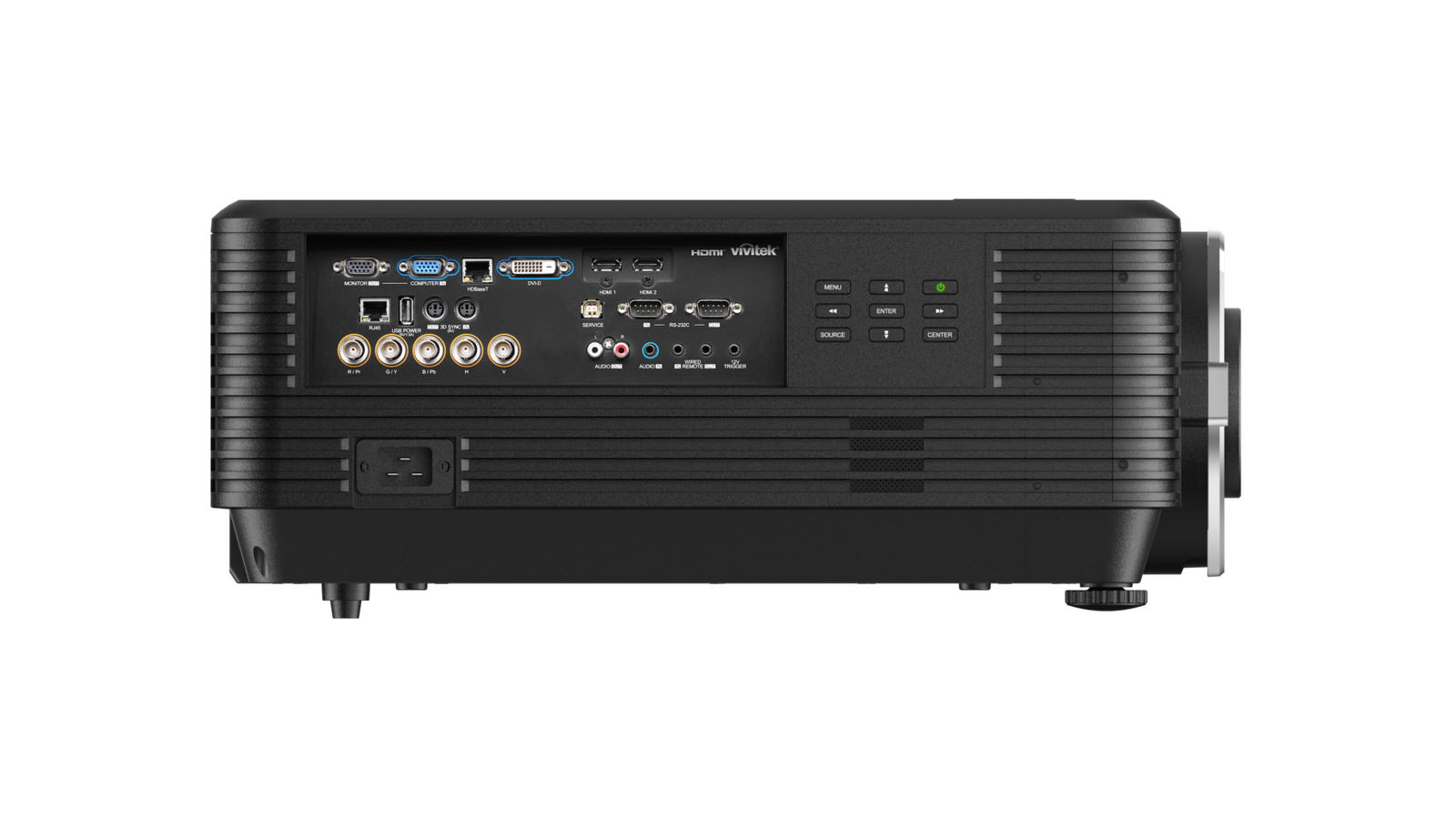

VGA-In (15pin D-Sub) , HDMI Number of Ports v.2.0 (x2), DVI-D , Component (5 BNC) (RGBHV) , USB B (Service), Remote Jack(wire remote) , RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A (Power Only), VGA-Out (15pin D-Sub) , Audio-Out (RCA) , RJ45 (x2: LANx1, HDBaseTx1), Component (YPbPr BNC x 3) , Composite Video , Audio-In (RCA) , Audio-In (Mini-Jack)
Dimensions (W x D x H)
470 x 517 x 202mm
Weight
20.6 kg
Noise Level
33dB/31dB (Normal/Eco. Mode)
Power
Supply: AC 100-240V, 50/60Hz Consumption: 465W (Normal Mode), <0.5W (Standby)
Remote Control P/N
5042221900
Standard Accessories
VGA Cable , AC Power Cord , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
Optional Accessories
Remote Control P/N (5042221900), 3D Ready(DLP link, PC+Video) , Direct 3D (HDMI 1.4a) , 3D Mandatory Formats supported (top/bottom, right/left, frame sequential) , Keypad lock
Warranty
Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)
